Custom Automatic Pure PE BIB Bag-In-Box Making Machine Suppliers

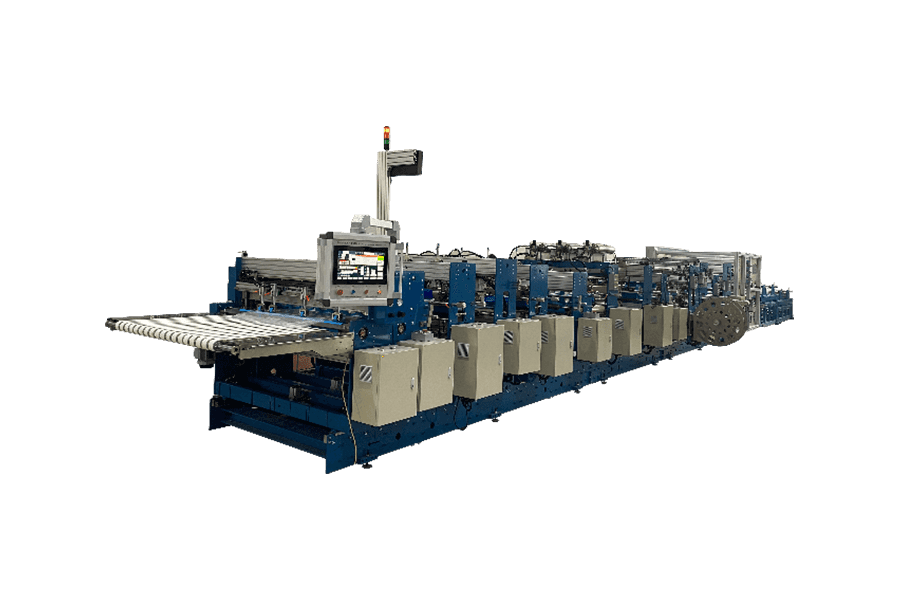

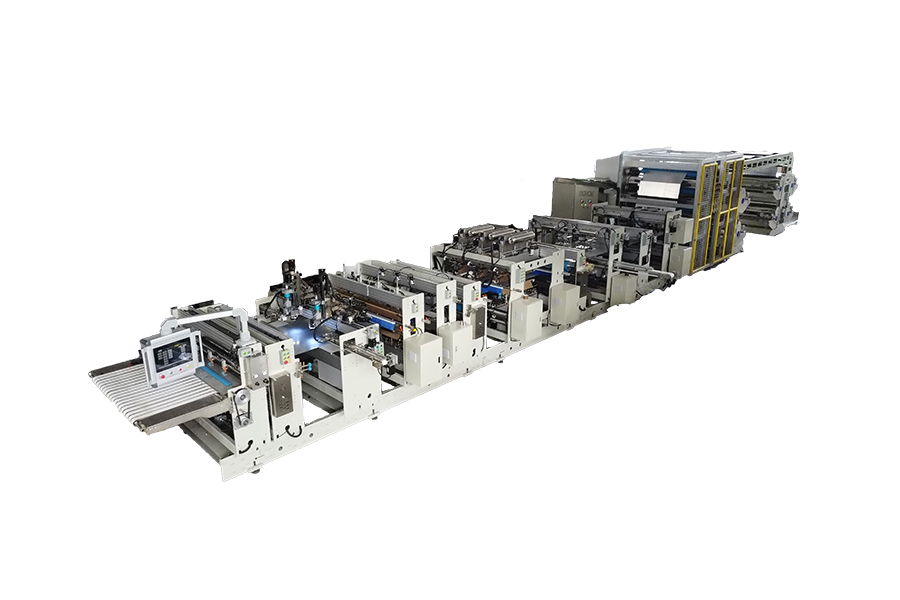

DLP-1300 intelligent BIB bag-in-box bag making machine

DLP-1300 intelligent BIB bag-in-box bag making machine is mainly used to provide BIB bag-in-field. This system uses intelligent management era to complete the bag making task speedy and efficiently. The DLP-1300 intelligent BIB bag-in-box bag making machine has many features and functions. First of all, it makes use of a high-precision ultrasonic device that may accurately calculate the diameter of the roll, and cooperates with the position calculation of the absolute value encoder of the floating curler to make sure that the anxiety of every movie is consistent. Secondly, the bag speed of this device is adjustable and may be flexibly adjusted in keeping with production desires to improve running overall performance. In addition, the machine is also prepared with automated cloth destroy detection and alarm. Once movie damage is detected, an alarm may be issued in time to keep away from manufacturing interruptions. DLP-1300 intelligent BIB bag-in-box bag making machine is appropriate for generating BIB bag-in-box made of numerous unmarried materials along with plastic films and composite materials. Cartons of numerous specifications and sizes can be produced in keeping with person wishes to fulfill the needs of BIB packaging containers with distinct capacities.

Product Details

Features：

1. Suitable for all heat sealing materials, including single material pure PE.

2. Bag shape: four side sealing plus valve

3. The system design integrates mechanical, electric and pneumatic, which is a cross-generation automatic bag-making equipment.

4. The system control adopts Panasonic's GM1 programmable controller.

5. Pulse heat sealing technology: no preheating, heating 150°C/0.85S, cooling 60°C/1S, more suitable for single material or pure PE bag sealing pressure.

6. Ipad split-screen operation, no matter which position on the machine, you can easily control it.

7. One key to change type: when producing different products, without any mechanical adjustment or product debugging, just one key to switch to complete the product data formula, data storage capacity of up to 10,000 groups.

8. Unwinding system: each roll of film is actively fed by servo motors, with ultrasonic calculation and automatic tension control to ensure that the tension between each layer of film is highly consistent.

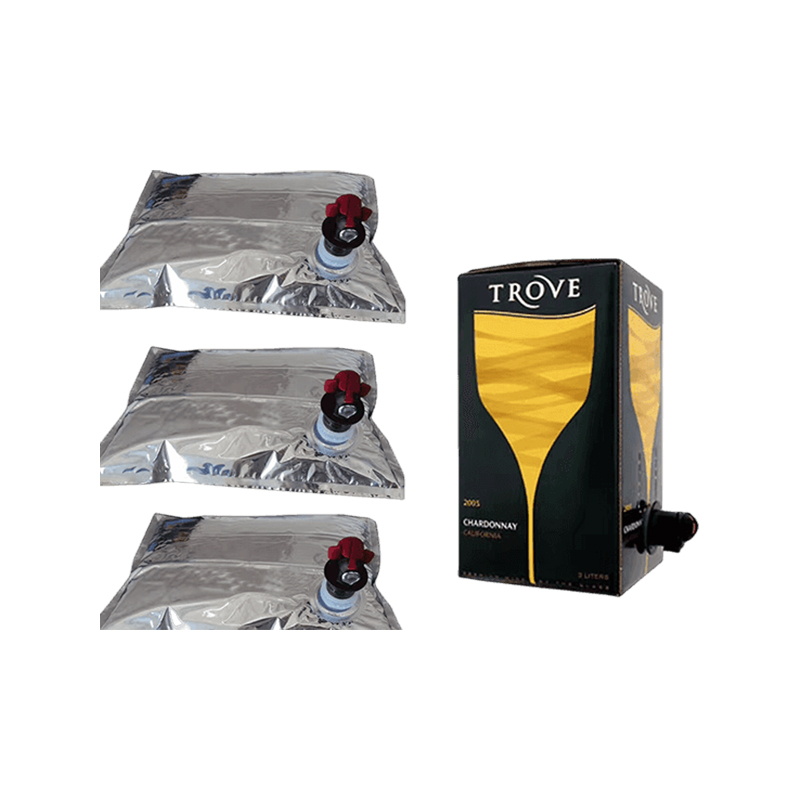

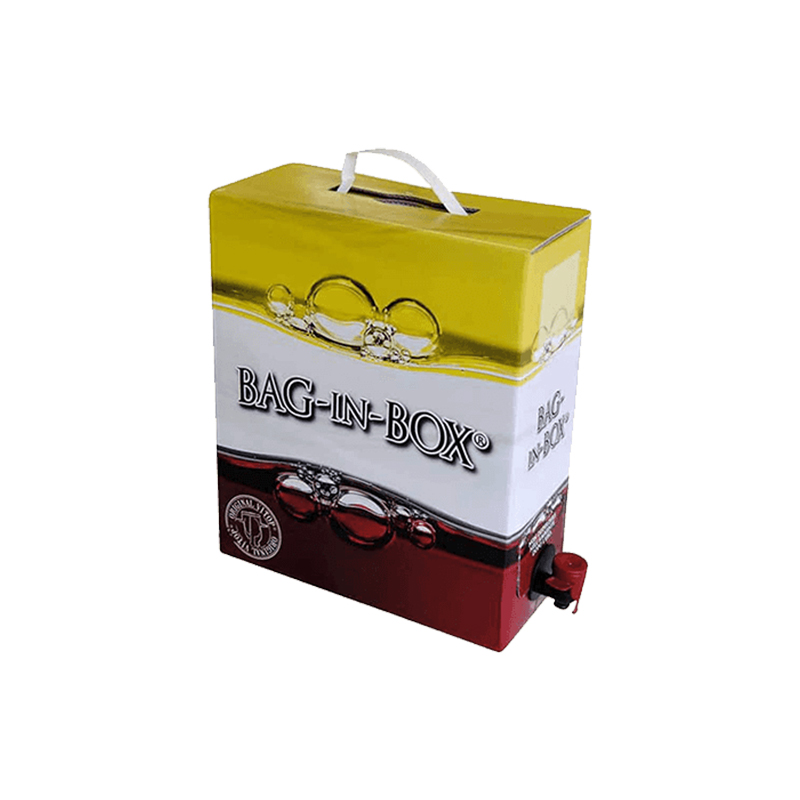

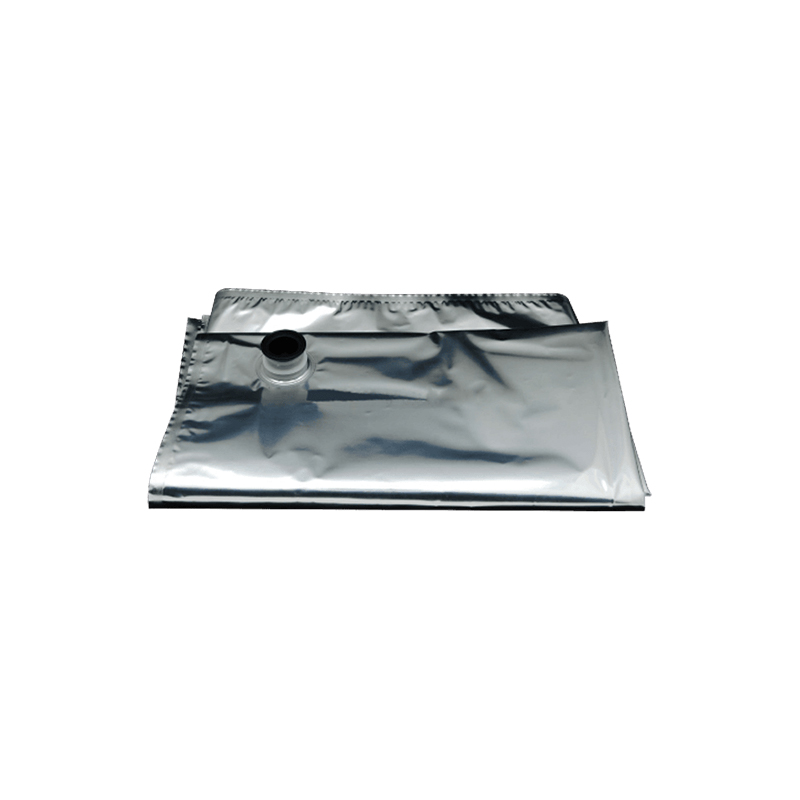

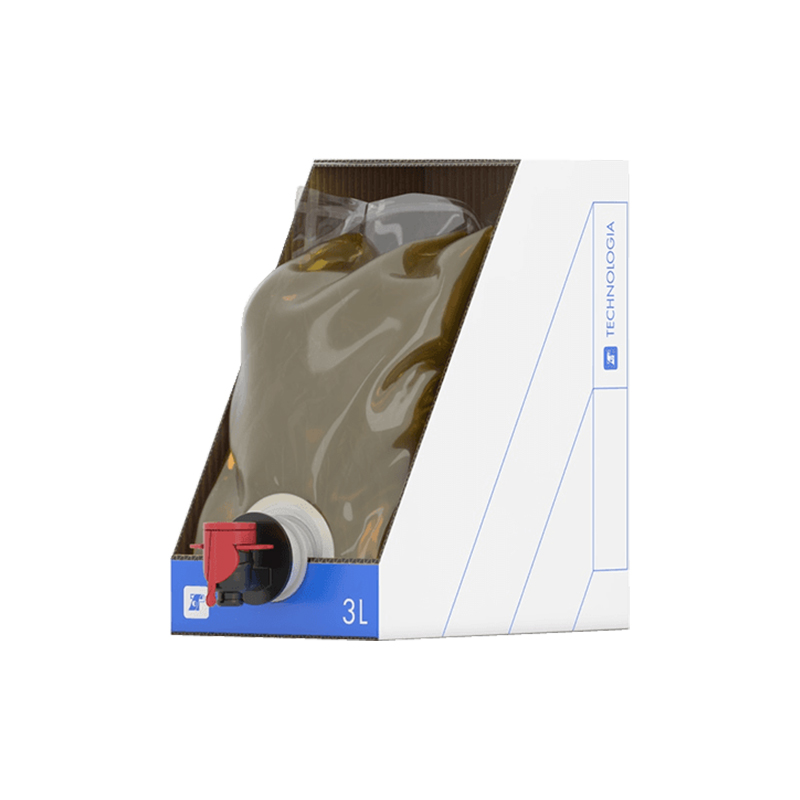

Finished product

Professional bag making machine manufacturer

Zhejiang Delipu Intelligent Manufacturing Co., Ltd. is a high-tech enterprise focusing on intelligent manufacturing, headquartered in Zhejiang, China. Our Company is China OEM/ODM Automatic BIB Bag-In-Box Making Machine Manufacturers and Custom Pure PE Bag-In-Box Making Machine Suppliers, Factory. The company is mainly engaged in the research and development, production and sales of intelligent bag making machines, and its products cover multiple series such as single material recyclable pure PE bag making machine, co-extrusion film composite film bag making machine, paper bag making machine, etc.

Zhejiang Delipu has been committed to providing customers with high-quality, high-efficiency intelligent bag-making machine series products, as well as professional technical support and after-sales service. The company's products have been widely praised in the market for their stability, reliability, ease of use and other characteristics.

The company has a professional R&D team and maintains close cooperative relations with many well-known universities and research institutions at home and abroad to jointly promote the development of intelligent manufacturing technology. At the same time, the company also continuously introduces international advanced technology and equipment to improve its own R&D capabilities and production level.

Zhejiang Delipu always adheres to the business philosophy of "customer-centric, quality as life", and is committed to providing customers with the quality products and services. In the future development, the company will continue to increase R&D investment, expand business scope, and provide global customers with more intelligent and efficient bag-making machine series products.
