DLP-1300DD medical high temperature sterilization pouch/header bag making machine
Request for quotation
  • DLP-1300DD medical high temperature sterilization pouch/header bag making machine
Model:

DLP-1300DD medical high temperature sterilization pouch/header bag making machine

DLP-1300 medical high temperature sterilization bag/header bag making machine is a piece of equipment specially used to manufacture medical high temperature sterilization bags and top bags. The machine is suitable for a variety of different materials such as Tyvek, PE and co-extruded films. The operation of the machine is simple and convenient, and the operators only need simple training to get started. The machine has efficient production capacity and can continuously produce high-quality packaging bags. Its production speed is fast and it can meet the production needs of various scales. At the same time, the machine also has adjustable size and shape, and can customize packaging bags of different specifications according to needs.

Share:

PREV：No previous productNEXT：DLP-600 medical paper plastic composite bag making machine

Product Details

Features：
1. Suitable for Tyvek, PE, co-extruded film.

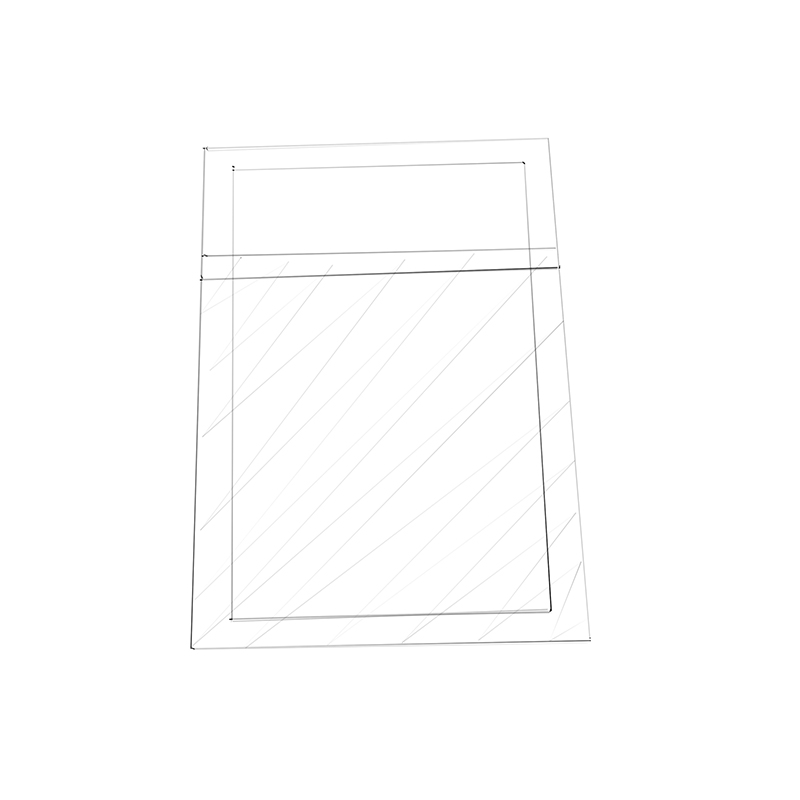

2. Bag shape: three side sealing plus top header
3. The system design integrates mechanical, electric and pneumatic, which is a cross-generation automatic bag-making equipment.
4. The system control adopts Panasonic's GM1 programmable controller.
5. Recipe making: different product sizes, bag types and materials form their own production data sets when achieving quality. Unique product recipes: such as heat sealing temperature, film tension, length and number, the horizontal and vertical position of each module, etc., "recipe production" refers to the production based on these data.
6. Pulsed heat sealing technology: no preheating required, heating at 150°C/0.85S, cooling at 60°C/1S, more suitable for single material or pure PE bag sealing.
7. Unwinding system: each roll of film is actively fed by servo motor, with ultrasonic calculation and automatic tension control to ensure the tension between each layer of film is highly consistent.

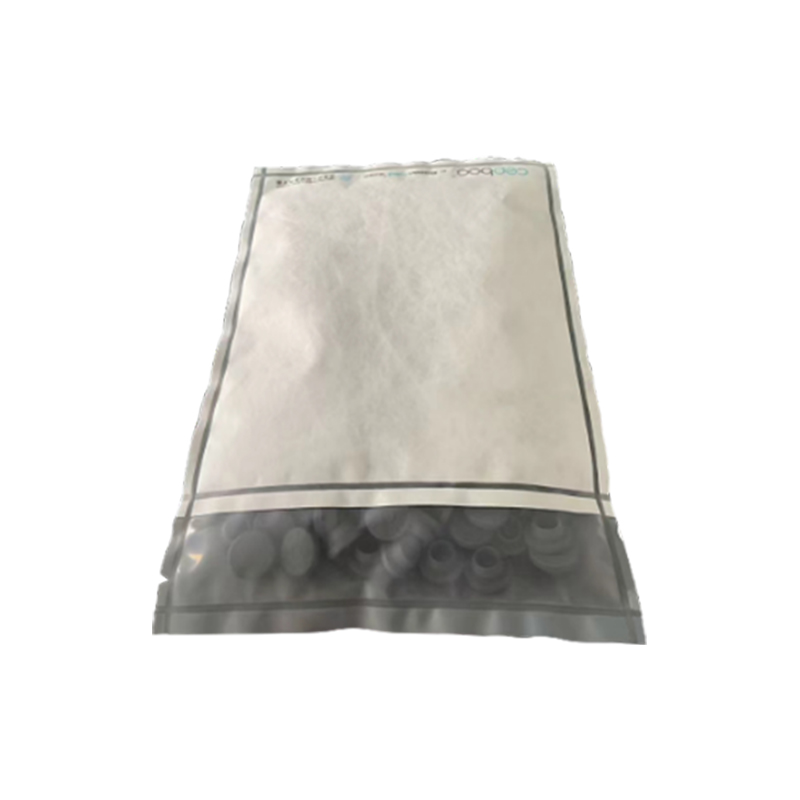

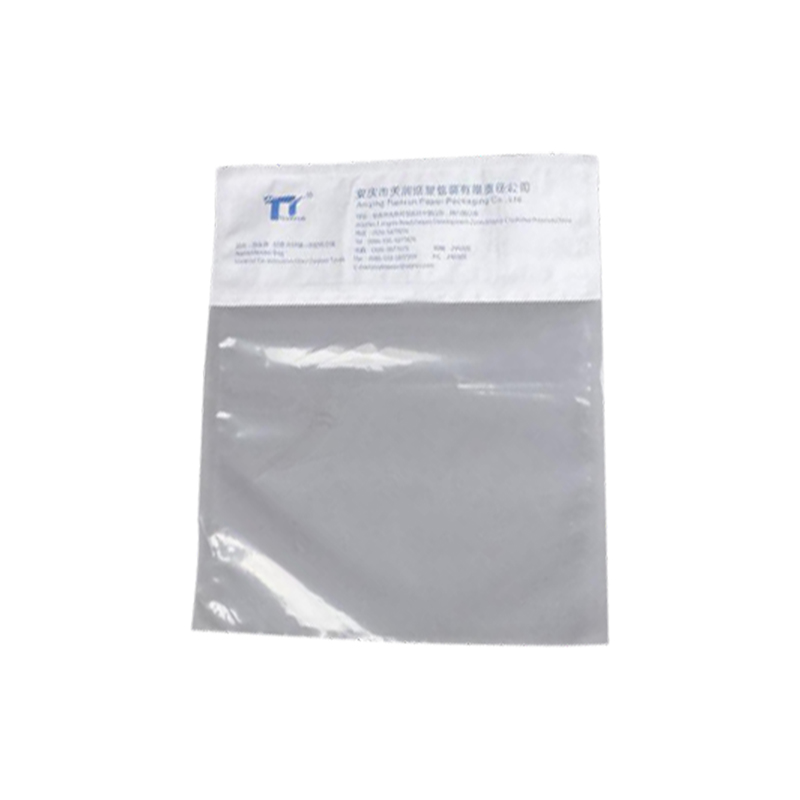

Finished product
